Acoustic Sound Barrier (BLACK)

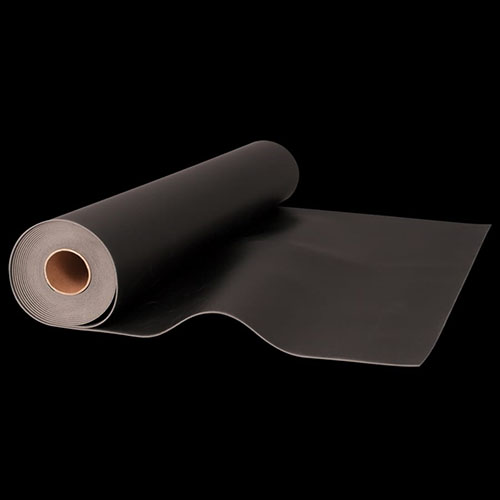

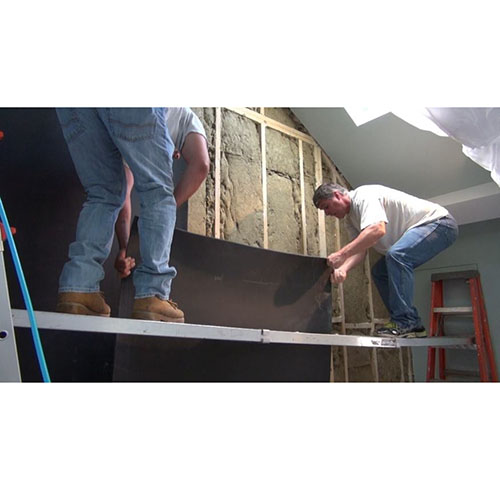

Acoustic Sound Barrier is a dense, limp-mass vinyl material that is used to stop the transmission of sound in a wall stack-up of materials. It acts as a thin, dense sound barrier layer in walls, ceilings, or floors and is most effective when used as one component of a multi-layered construction scheme. Acoustic Sound Barrier is especially useful for decoupling (i.e., floating) floors and walls in isolation construction applications, reducing airborne and impact noise transmission. This material can also be applied in both residential and commercial spaces to improve soundproofing, offering long-lasting results and enhancing privacy. By adding this barrier to your construction or renovation project, you significantly reduce noise disturbances from adjacent rooms or external sources.

Applications:

Acoustic Sound Barrier can be widely used in residential homes and public places such as disco ballrooms, gymnasiums, factory workshops, home cinemas, hotel lobby, hospital, shopping mall, school, piano room, conference room, studio, recording room, bars, industrial plants, room, etc. The mass loaded vinyl sound proofing can hugely reduce noise coming from vibration.

Features and Benefits:

  • Over 95% Recycled material

  • Optimized density and resiliency

  • Efficient spring action

  • Low compressibility

  • No creep or long term degradation

  • Strength under load

  • Effective impact noise reduction

  • Environmentally friendly

  • Low odor

  • Long life

  • Can be used together with Geowool or Mandi acoustic board (wall isolation)

  • Urethane as Binder

 Technical Information for Acoustic Sound Barrier (BLACK):

  • Width: 1.37m

  • Thickness: 3mm

  • Intended Use: Sound blocking

  • Colour: Black (smooth on one side, has a pebble grain finish on the other side)

  • STC: 26

Sound Transmission Loss (dB) Per Octave Band (Hz)

Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz STC
3mm
14
19
23
28
33
37
26

FOR MORE INFORMATION ON OUR ACOUSTIC SOUND BARRIERS CALL US ON 078 562 5428 or Contact our sales team
